Advanced 3D X-ray Inspection System for Micron Defects

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

High precision Industrial CT (computed tomography) X-ray 3D inspection system NDT analysis

(For Li-ion battery / composite materials / Additive manufacturing / science and research, etc.)

⚙️Key Features

Granite motion structure, resistant to warping and temperature changes, ensuring long-term precise operation
Micron-level repositioning accuracy
Arcsecond-level stage rotation accuracy
High-precision grating scale

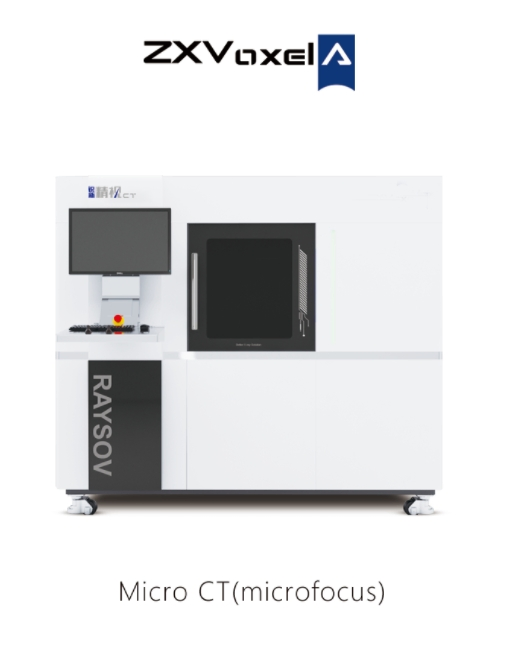

Model NO.

ZXVoxel A-Type

Display

Digital

X-ray Source

Micron Focus X-ray Tube

X-ray Energy

100kv/130kv/150kv/225kv/300kv Optional

Scanning Range

Dia250mm Height200mm

Load Capability

50kg

Specification

Model	ZXVoxel U	ZXVoxel A	ZXVoxel C	ZXVoxel D-IN
Scan Range (mm)	D=100 H=100	D=250 H=200	D=250 H=250	D=330 H=330
Max Object Size	D=200 H=200	D=400 H=500	D=500 H=500	D=550 H=700
X-ray Source	100kV 5μm	160/225kV 0.4μm	160/225/300kV 3μm	160/225/320/450kV 0.4mm
Description	Benchtop CT	Source fixed, rotation stage lift	Source fixed, rotation stage lift	Integrated IN, rotation stage lift

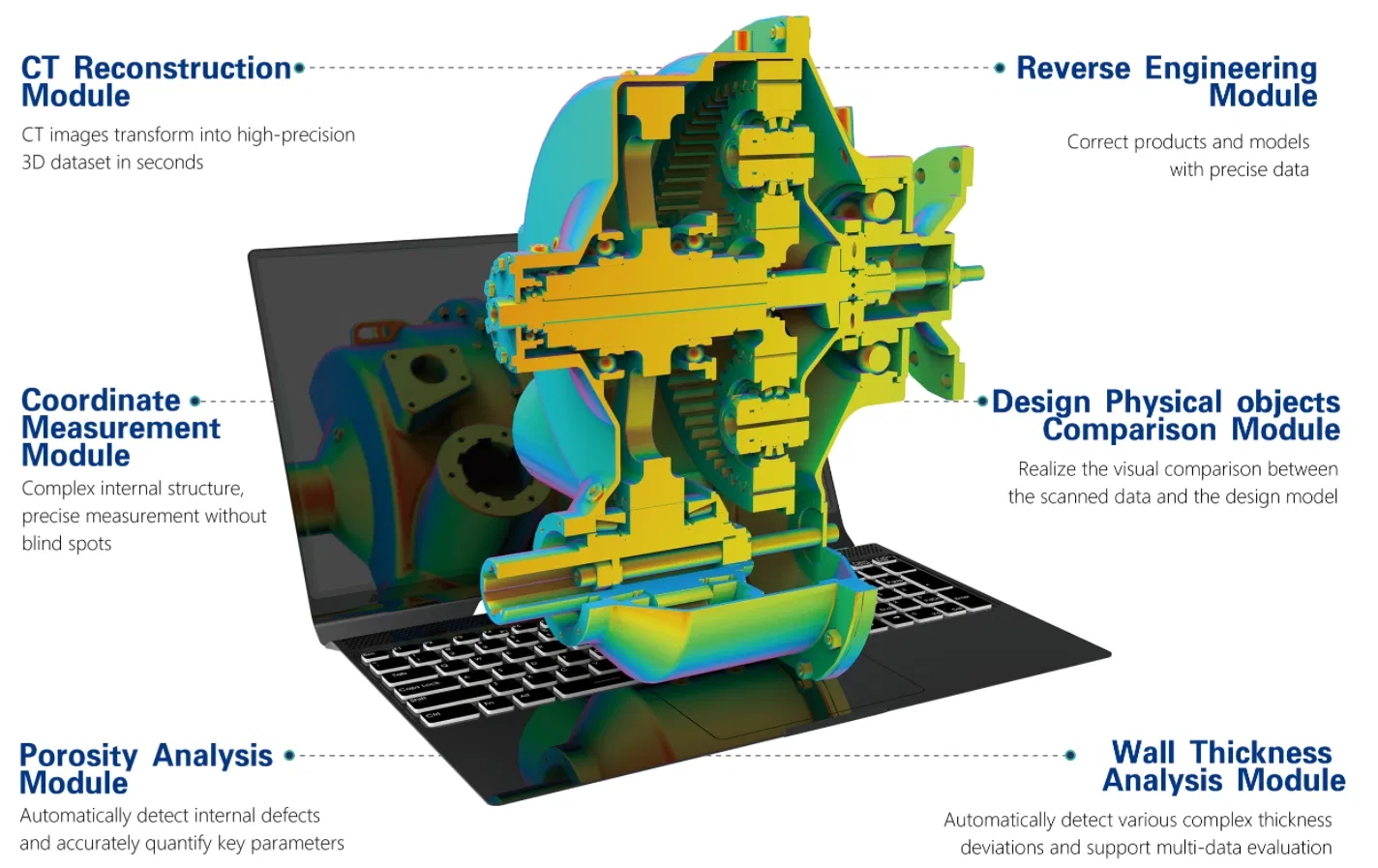

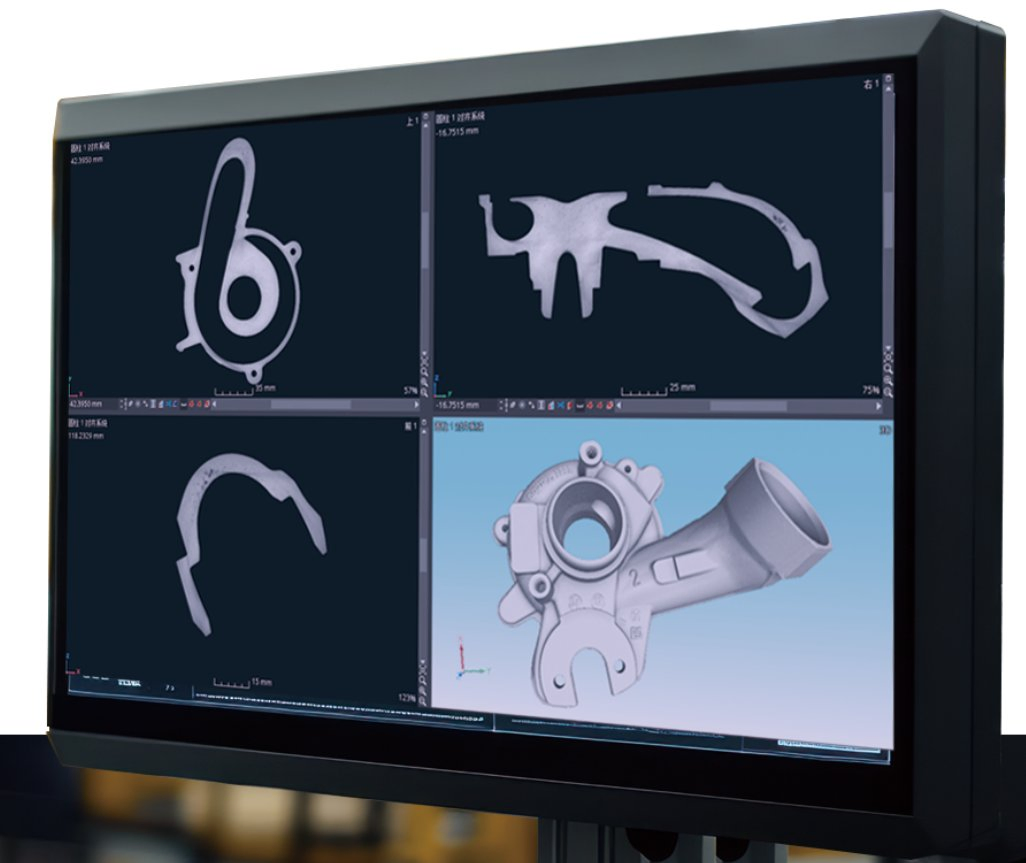

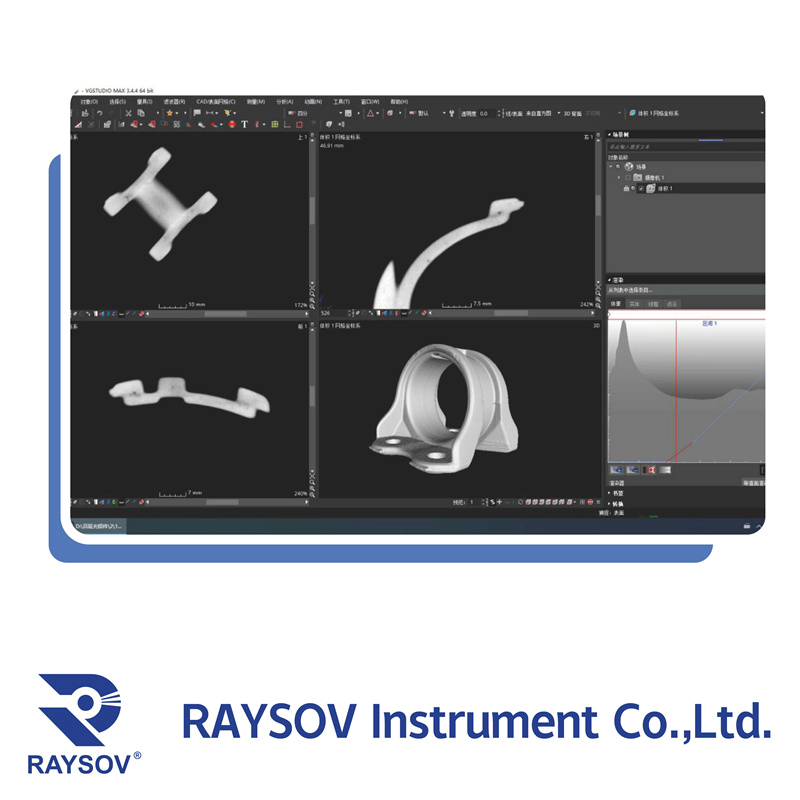

💻3D Reconstruction & Analysis Software

Powerful data processing capabilities and precise analysis functions with optional modules:

3D coordinate measurement
Pore/inclusion analysis
Wall thickness analysis
CAD import (PMI)
Fiber composite analysis
Structural mechanics simulation

Professional Capabilities

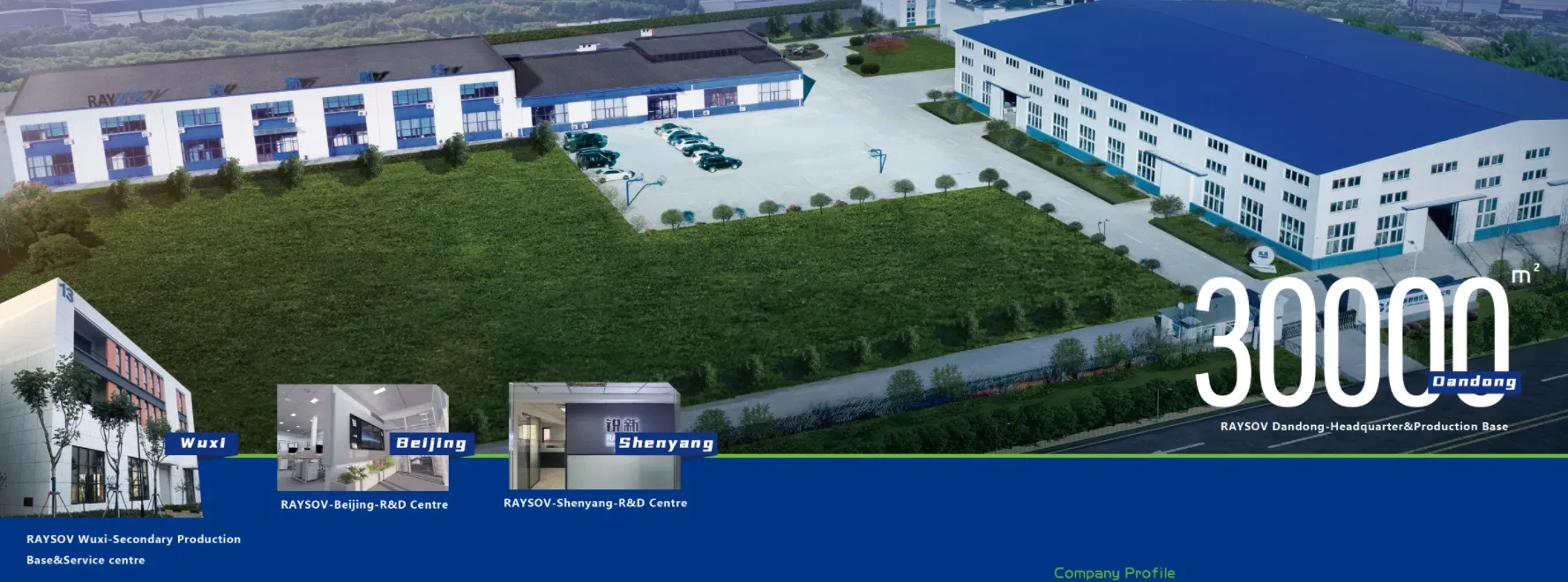

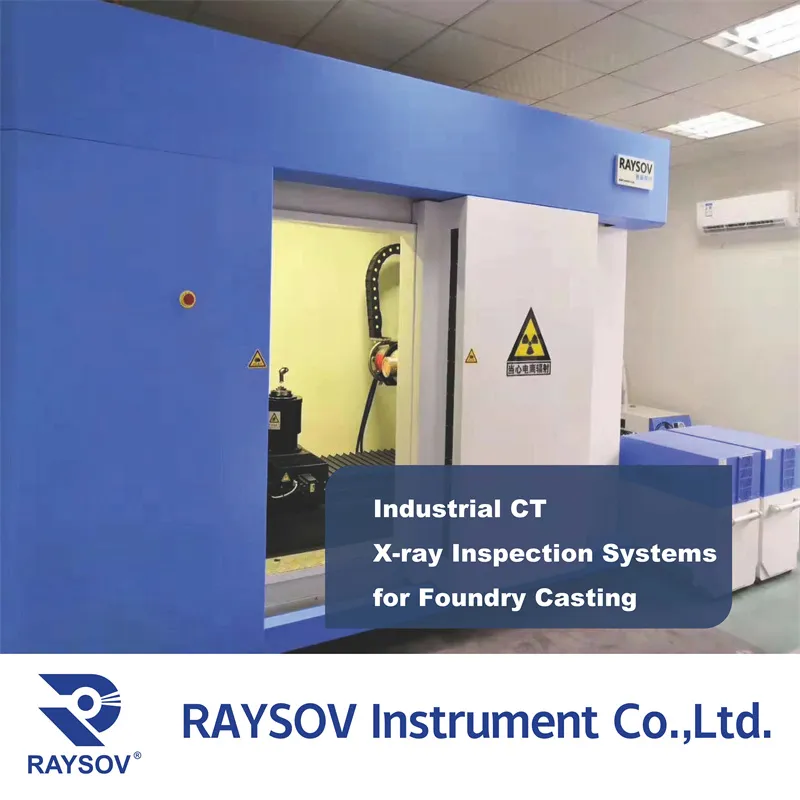

Established in 2009, our manufacturing base focuses on advanced X-ray non-destructive testing and evaluation instruments. We provide automated industrial DR and industrial CT inspection solutions globally.

We strictly adhere to international standards, holding certifications such as ISO9001, ISO14001, ISO45001, and ISO27001. With independent intellectual property rights and numerous national invention patents, we offer custom-built solutions for various technology projects worldwide.

🏆Why Choose Us?

✓ Competitive pricing & bulk discounts
✓ Fast shipping & customs support
✓ Turnkey project solutions

🌍Global Support

✓ 12-months warranty
✓ Regular operation training
✓ 24/7 technical assistance

Product FAQ

Q1: What's the typical lead time for orders?

Standard models generally ship within 3 months, while customized units or complex systems require approximately 6 months for manufacturing and calibration.

Q2: Do you provide after-sales service and support overseas?

Yes, we provide 24/7 technical assistance and have partnered service centers in key regions to ensure global support and spare parts supply.

Q3: Can the equipment be customized for specific industry needs?

Absolutely. We offer tailored attachments and customized CT reconstruction modules to suit specific applications like battery testing, turbine blades, or additive manufacturing.

Q4: What export documentation is included?

We provide a full export package, including the Commercial Invoice, Packing List, Bill of Lading, and necessary quality certifications.

Q5: How is the equipment protected during international transport?

Equipment is packed using professional sea-worthy packaging that meets international shipping requirements to ensure stability and safety.

Q6: How do I initiate an order?

Please contact our sales team to receive a formal quotation based on your technical requirements, which can then be confirmed with a Purchase Order (PO).
